- True RMS (Echt-Effektivwert-Messung)
- iOS/android App
- Digitalanzeige mit Analogbalken 21 mm
- Anzeigewert bis 5999
- Hintergrundbeleuchtung
- Diodentest
- Min- /Max- Speicher
- Data Hold
- Kapazitätsmessung
- Frequenzmessung
- Tastgrad in % (PBM) 0,1 – 99,9 %

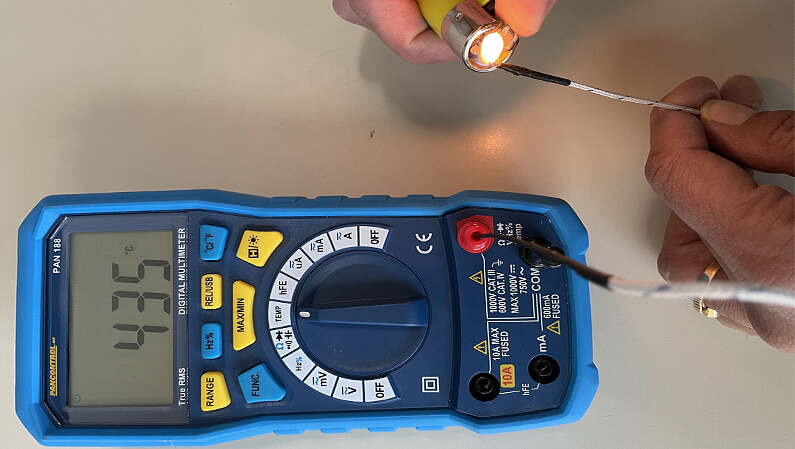

- Temperaturmessung
- Relativwertmessung
- Automatische und manuelle Bereichswahl
- Transistortest
- Autom. Abschaltung
- Abmessungen 204 x 93 x 57 mm
- Benötigte Batterie(n): 4 x 1,5V AAA
- CAT III 1000 V
- CAT IV 600 V

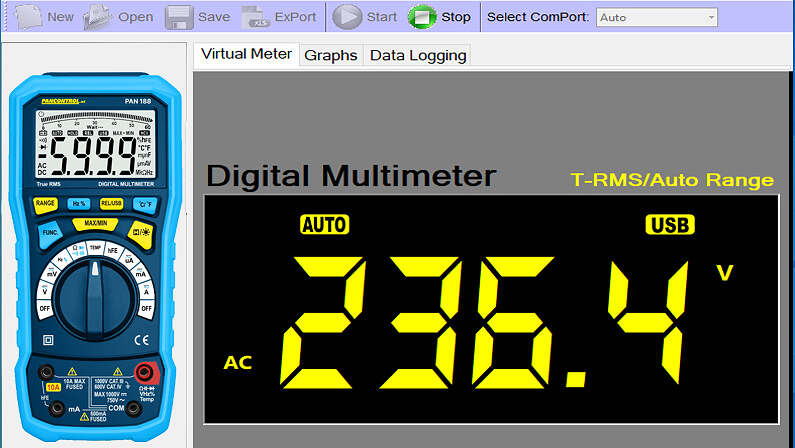

- Lieferumfang: Tasche, Prüfkabel, Typ-K Temperaturfühler, Bluetooth PC Schnittstelle + Software, Bedienungsanleitung
Digital-Multimeter PAN 188 True RMS
CHF 125.00

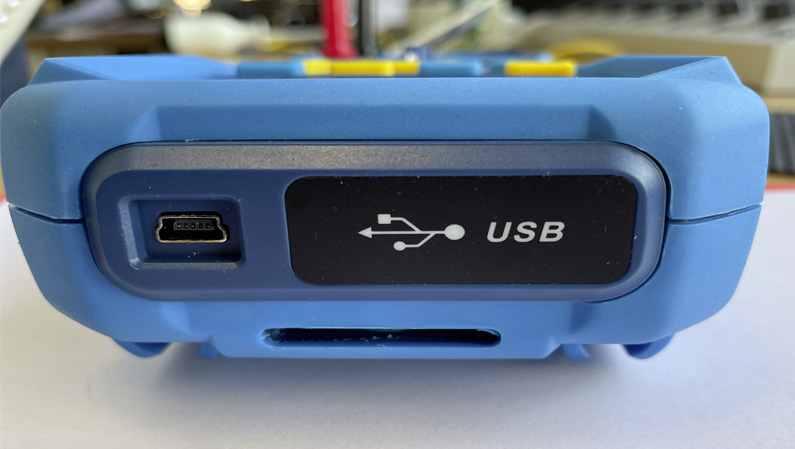

1000V CAT III True RMS mit Bluetooth + USB Schnittstelle
Das preiswerte Multimeter für die professionelle Anwendung
- Robust und Handlich
- Exakte Messwerte durch True RMS Echt-Effektivwertmessung
- Komfortabel und Sicher
- Zuverlässige Messergebnisse
Gleichspannung DC (V =) | 0,1 mV – 1000 V |
---|---|

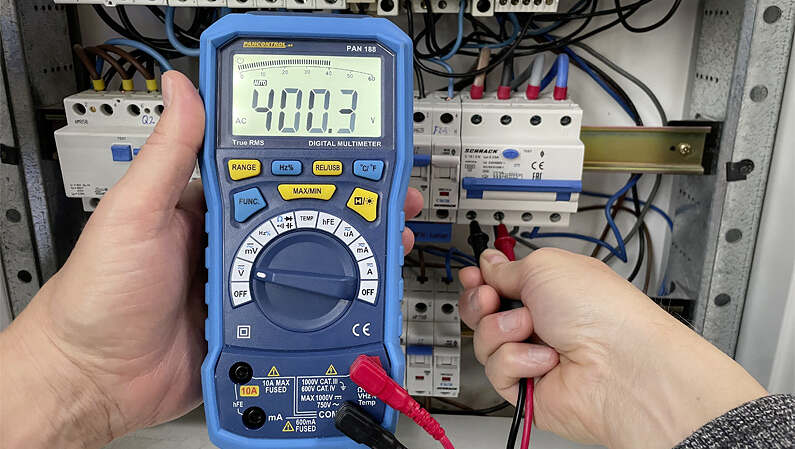

Wechselspannung AC (V ~) | 0,1 mV – 750 V |
Gleichstrom DC (A =) | 0,01 μA – 10 A |

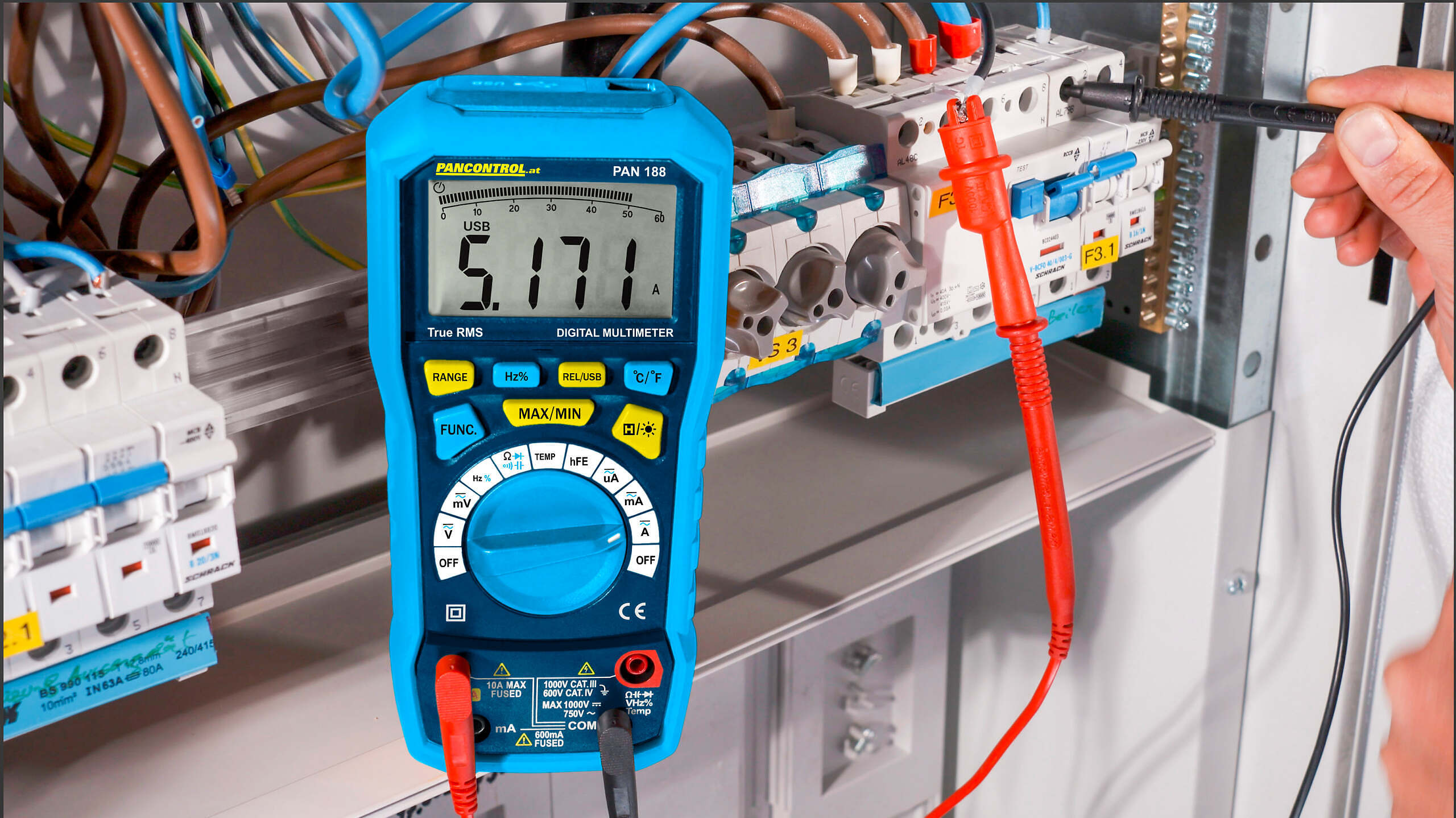

Wechselstrom AC (A ~) | 0,01 μA – 10 A |

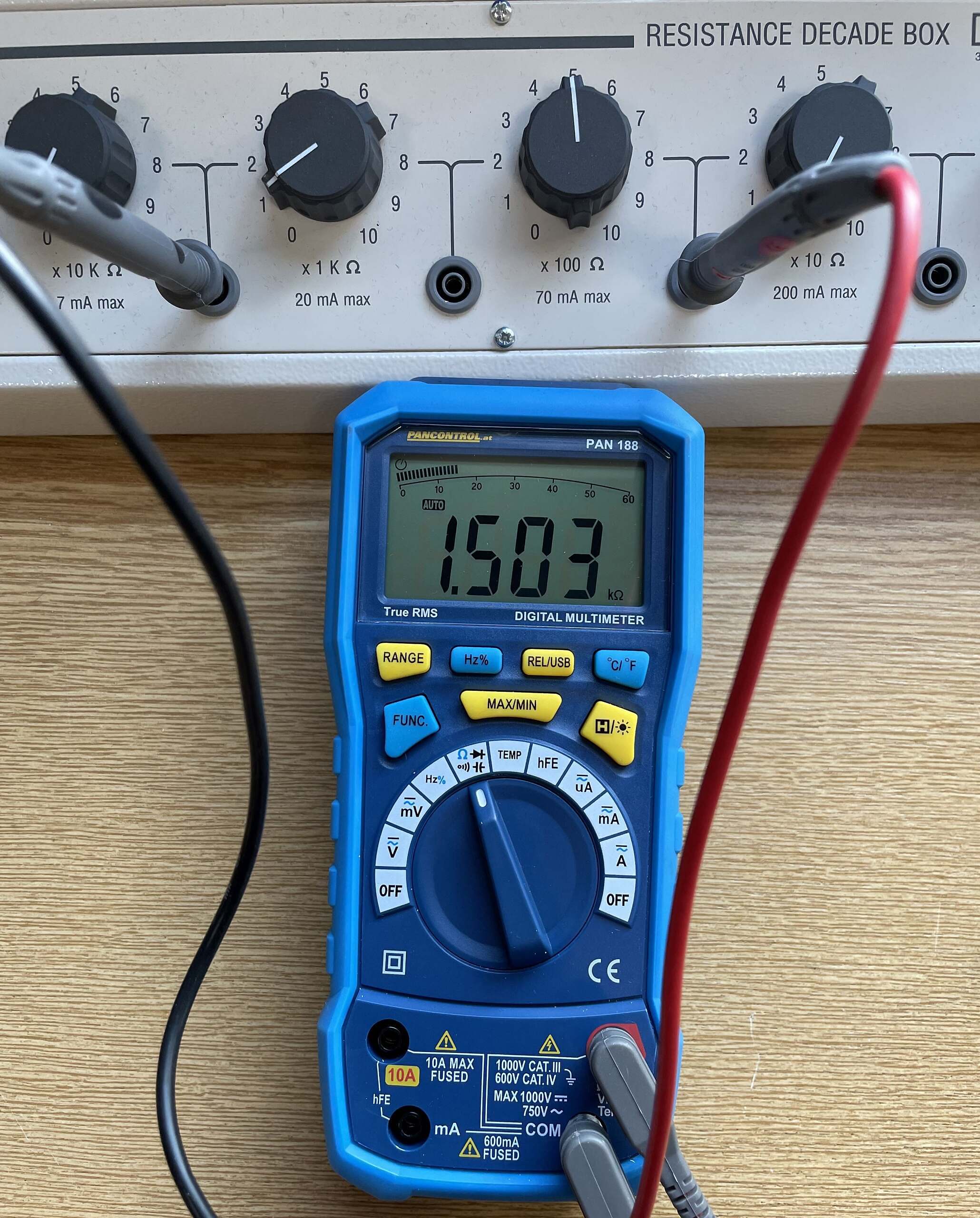

Widerstand (Ω) | 0,1 Ω – 60 MΩ |
Frequenz (Hz) | 0,01 Hz – 10 MHz |
Kapazität (F) | 10 pF – 100 mF |
Genauigkeit | 0.7 – 3.0 % |
Akustischer Durchgangsprüfer •))) | < 50 Ω |
Gewicht Brutto | 360 g |
